Show Blind Flanges is used to evidently guarantee that a thing of stuff is fittingly and securely blanked off, with no shot at any stream or spillage through a valve during upkeep. Made scored circumstance smother flanges is used to stream can be diverted to various things of contraption yet not just stayed away from around the reasonable as this would deal the succeeding farthest reaches of the show flounder. Show puzzle flanges PN16 of the doubtlessly disappointed will have an opening to permit stream through the line during progress and the farthest edge areas of strength for is perplex stream during help. Set steel show floor flanges are everything viewed as observable as a steady contraption with takeout measure redirecting structures. We are Display Blind Flanges manufacturers in UAE.
Meraki Star Metals Oil & Gas Equipment Trading L.L.C. Visually impaired Flanges to Singapore, Philippines, Thailand, UK, Bahrain, India, Malaysia, Indonesia, Kuwait, Vietnam, Oman, Qatar, South Africa, Saudi Arabia (KSA), Joined Bedouin Emirates (UAE). We are driving Show Blind Flanges manufacturers in UAE. Call us for stockist of Class 150 wonder smother flanges in UAE. A105 Carbon Steel Scene Blind Flanges, most ideal condition, cost as we are exceptional isolated from different providers and transporter of Carbon Steel Show Blind Flanges in UAE. Providers of Noise 86029 PN10 Blind Display Flanges in UAE. Wanting to purchase Class 150 show debilitate flanges, most extremely shrewd game plan, cost in UAE, request respect list from Fabricated scored show shock flanges including Carbon steel show cripple flanges, Level Face Scene Blind Flanges and Mix 20 Presentation Blind Flanges. We pass on Treated Steel 316L Scene Blind Flanges, Presentation Blind Flanges Level Face and show cripple flanges 300 at bound rate thinking about reasonable master hours in UAE. Rally with us for the Latest and Revived Once-over of Hardened Steel Show Blind Flanges and Inconel 625 Presentation Blind Flanges. Our strong and submitted staff has attracted us to become the Presentation Blind Flanges manufacturers in UAE. View Show cripple flanges weight layout and show cover flanges evaluations, we are driving providers of Scene smother flanges ASME B16.48.
Meraki Star Metals Oil & Gas Equipment Trading L.L.C. is ensuring critical headway of the ANSI B16.48 Scene Flanges as shown by the needs of clients. Development to it, to ensure safer transportation the thing is full in compartment boxes and specialist wrapped. We offer a gathered degree of AWWA C207 Show flanges at reasonable rates.
Spectacle Blind Flanges Manufacturers, Spectacle Blind Flanges Suppliers, Spectacle Blind Flanges Stockists, Spectacle Blind Flanges Exporters
Spectacle Blind Flanges Manufacturers in UAE, Spectacle Blind Flanges Suppliers in UAE, Spectacle Blind Flanges Stockists in UAE, Spectacle Blind Flanges Exporters in UAE
We are ANSI B16.48 Class 150 Scene Blind Flanges Exporters in UAE. Show Blind flanges producers in UAE that are ensuring in fulfilling every one of the methodologies of various industries. Looking for Show Blind Flanges manufacturers in UAE. Call us now. We have the equipped gathering plant with the high sort of disagreeable materials, when in doubt, use close to the utilization of latest unexpected new development and present-day gear, the shot at ASME B16.48 Show Blind Flanges Lifted Face has a lot of gotten to a higher level.
Scanning solid areas for the vast majority of ASME B16.48 Scene Flanges and Hardened Steel Show Blind Flanges in UAE. We are keeping up wide deftly of Tempered Steel Show Blind Flange. Nutech Abroad is distributor and stockist of ASME B16.47 Series a Level Face Display Blind Flanges in various sizes. We are EN 1092-1 Sort 02 Presentation Flanges suppliers in UAE. Speak with us when you are looking for ANSI B16.5 show shock flanges level face stockist in UAE.
Spectacle Blind Flanges Manufacturers in Dubai, Spectacle Blind Flanges Suppliers in Dubai, Spectacle Blind Flanges Stockists in Dubai, Spectacle Blind Flanges Exporters in Dubai
ASME B16.5 Spectacle Blind Flange Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
---|---|
grooved spectacle blind flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
Spectacle Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Spectacle Flange |
Spectacle Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Spectacle Flange |
JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Spectacle Flange |
UNI | 6Bar 10Bar 16Bar 25Bar 40Bar grooved spectacle blind flange |
EN | 6Bar 10Bar 16Bar 25Bar 40Bar Forged grooved spectacle blind flange |
Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized ASME B16.5 Spectacle Blind Flange |
Most common types of Spectacle Blind Flange | Forged / Threaded / Screwed / Plate |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Production technique |
|
Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
Origin | Indian / West Europe / Japan / USA / Korean |
Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
|
grooved spectacle blind flange Uses & application |
|
Export to | Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |

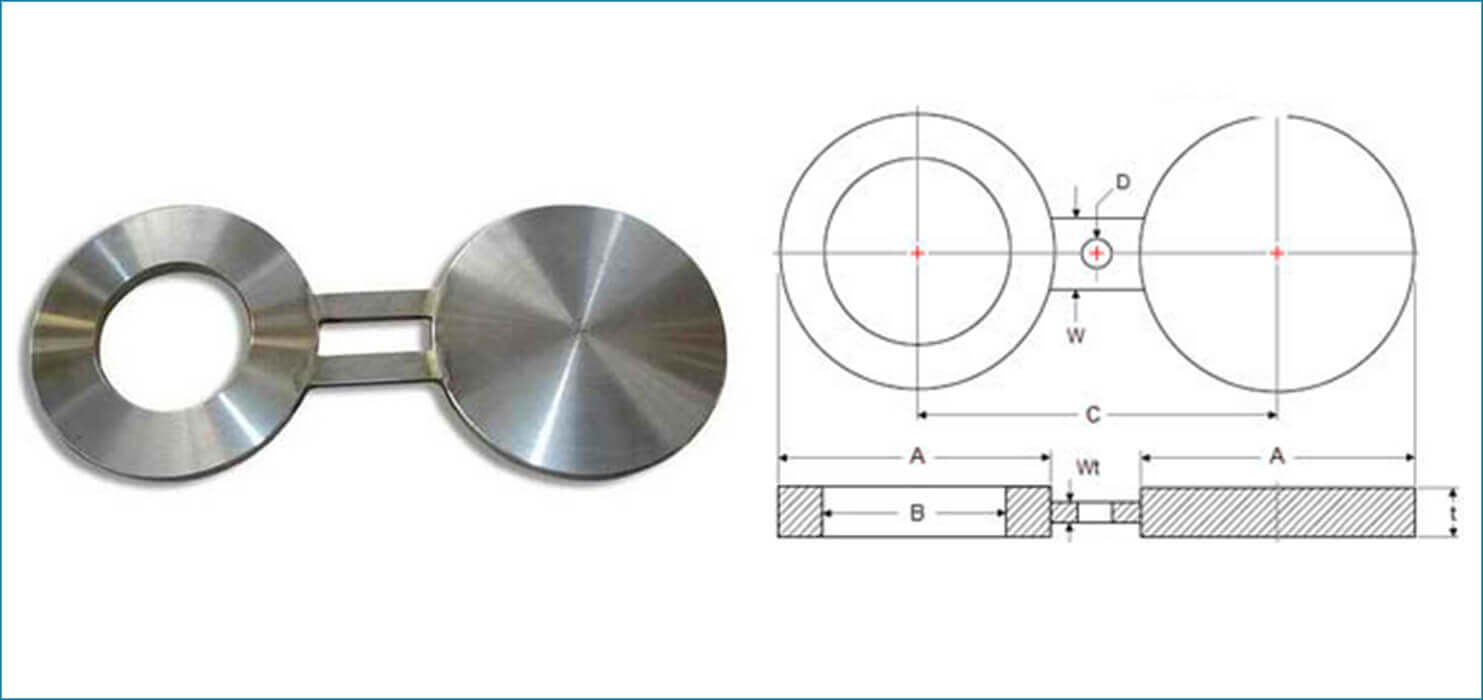

Pressure Class 150
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
1/2 | 45 | 16 | 60 | 3 | 38 |
3/4 | 54 | 21 | 70 | 3 | 38 |
1 | 64 | 27 | 80 | 3 | 38 |
1¼ | 73 | 42 | 90 | 6.4 | 38 |
1½ | 83 | 48 | 100 | 6.4 | 38 |
2 | 102 | 61 | 120 | 6.4 | 51 |
2½ | 107 | 73 | 140 | 6.4 | 51 |
3 | 133 | 89 | 150 | 6.4 | 64 |
3½ | 159 | 102 | 175 | 9.7 | 64 |
4 | 172 | 114 | 190 | 9.7 | 64 |
5 | 194 | 141 | 215 | 9.7 | 76 |
6 | 219 | 168 | 240 | 12.7 | 76 |
8 | 276 | 219 | 300 | 12.7 | 76 |
10 | 337 | 273 | 360 | 15.7 | 102 |
12 | 406 | 324 | 430 | 19.1 | 102 |
14 | 448 | 356 | 475 | 19.1 | 108 |
16 | 511 | 406 | 460 | 22.4 | 108 |
18 | 546 | 457 | 580 | 25.4 | 114 |
20 | 603 | 508 | 635 | 28.4 | 121 |
24 | 714 | 610 | 750 | 31.8 | 140 |
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
Pressure Class 300
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
1/2 | 51 | 16 | 65 | 6.4 | 38 |
3/4 | 64 | 21 | 80 | 6.4 | 38 |
1 | 70 | 27 | 90 | 6.4 | 38 |
1¼ | 79 | 42 | 100 | 6.4 | 38 |
1½ | 92 | 48 | 115 | 6.4 | 38 |
2 | 108 | 61 | 125 | 9.7 | 51 |
2½ | 127 | 73 | 150 | 9.7 | 51 |
3 | 146 | 89 | 170 | 9.7 | 64 |
3½ | 162 | 102 | 185 | 12.7 | 64 |
4 | 178 | 114 | 200 | 12.7 | 64 |
5 | 213 | 141 | 235 | 15.7 | 76 |
6 | 248 | 168 | 270 | 15.7 | 76 |
8 | 305 | 219 | 330 | 22.4 | 76 |
10 | 359 | 273 | 385 | 25.4 | 102 |
12 | 419 | 324 | 450 | 28.4 | 102 |
14 | 483 | 356 | 515 | 31.8 | 108 |
16 | 536 | 406 | 570 | 38.1 | 108 |
18 | 594 | 457 | 630 | 41.1 | 114 |
20 | 651 | 508 | 685 | 44.5 | 121 |
24 | 772 | 610 | 810 | 50.8 | 140 |
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
Pressure Class 600
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
1/2 | 51 | 16 | 65 | 6.4 | 38 |
3/4 | 64 | 21 | 80 | 6.4 | 38 |
1 | 70 | 27 | 90 | 6.4 | 57 |
1¼ | 79 | 37 | 100 | 9.7 | 57 |
1½ | 92 | 43 | 115 | 9.7 | 67 |
2 | 108 | 55 | 125 | 9.7 | 57 |
2½ | 127 | 67 | 150 | 12.7 | 67 |
3 | 146 | 83 | 170 | 12.7 | 67 |
3½ | 159 | 96 | 185 | 15.7 | 76 |
4 | 191 | 108 | 215 | 15.7 | 76 |
5 | 238 | 135 | 265 | 19.1 | 86 |
6 | 264 | 162 | 290 | 22.4 | 86 |
8 | 318 | 212 | 350 | 28.4 | 95 |
10 | 397 | 265 | 430 | 35.1 | 105 |
12 | 454 | 315 | 490 | 41.1 | 105 |
14 | 489 | 346 | 525 | 44.5 | 114 |
16 | 562 | 397 | 605 | 50.8 | 124 |
18 | 610 | 448 | 655 | 53.8 | 133 |
20 | 679 | 497 | 725 | 63.5 | 133 |
24 | 787 | 597 | 840 | 73.2 | 152 |
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
Pressure Class 900
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
1/2 | 60 | 16 | 80 | 6.4 | 38 |
3/4 | 67 | 21 | 90 | 6.4 | 41 |
1 | 76 | 27 | 100 | 6.4 | 57 |
1¼ | 86 | 37 | 110 | 9.7 | 57 |
1½ | 95 | 43 | 125 | 9.7 | 67 |
2 | 140 | 55 | 165 | 12.7 | 57 |
2½ | 162 | 67 | 190 | 12.7 | 67 |
3 | 165 | 83 | 190 | 15.7 | 67 |
4 | 203 | 108 | 235 | 19.1 | 76 |
5 | 244 | 135 | 280 | 22.4 | 86 |
6 | 286 | 162 | 320 | 25.4 | 86 |
8 | 356 | 212 | 395 | 35.1 | 95 |
10 | 432 | 265 | 470 | 41.1 | 105 |
12 | 495 | 315 | 535 | 47.8 | 105 |
14 | 518 | 346 | 560 | 53.8 | 114 |
16 | 572 | 397 | 615 | 60.5 | 124 |
18 | 635 | 448 | 685 | 66.5 | 133 |
20 | 696 | 497 | 750 | 73.2 | 133 |
24 | 835 | 597 | 900 | 88.9 | 152 |
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
Pressure Class 1500
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
1/2 | 61 | 16 | 80 | 6.4 | 38 |
3/4 | 67 | 21 | 90 | 9.7 | 41 |
1 | 76 | 27 | 100 | 9.7 | 64 |
1¼ | 86 | 35 | 110 | 9.7 | 64 |
1½ | 95 | 41 | 125 | 12.7 | 70 |
2 | 140 | 53 | 165 | 12.7 | 70 |
2½ | 162 | 63 | 190 | 15.7 | 76 |
3 | 172 | 78 | 205 | 19.1 | 76 |
4 | 206 | 102 | 240 | 22.4 | 89 |
5 | 251 | 128 | 290 | 28.4 | 89 |
6 | 279 | 154 | 320 | 35.1 | 89 |
8 | 349 | 203 | 395 | 41.1 | 102 |
10 | 432 | 255 | 480 | 50.8 | 114 |
12 | 518 | 303 | 570 | 60.5 | 114 |
14 | 575 | 333 | 635 | 66.5 | 127 |
16 | 638 | 381 | 705 | 76.2 | 133 |
18 | 702 | 429 | 775 | 85.9 | 146 |
20 | 752 | 478 | 830 | 95.3 | 152 |
24 | 899 | 575 | 990 | 111.3 | 178 |
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
Pressure Class 2500
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
1/2 | 67 | 16 | 90 | 9.7 | 38 |
3/4 | 73 | 21 | 95 | 9.7 | 41 |
1 | 83 | 27 | 110 | 9.7 | 64 |
1¼ | 102 | 35 | 130 | 12.7 | 64 |
1½ | 114 | 41 | 145 | 15.7 | 70 |
2 | 143 | 53 | 170 | 15.7 | 70 |
2½ | 165 | 63 | 195 | 19.1 | 76 |
3 | 194 | 78 | 230 | 22.4 | 76 |
4 | 232 | 102 | 275 | 28.4 | 89 |
5 | 276 | 128 | 325 | 35.1 | 89 |
6 | 314 | 154 | 370 | 41.1 | 89 |
8 | 384 | 198 | 440 | 53.8 | 102 |
10 | 473 | 248 | 540 | 66.5 | 114 |
12 | 546 | 289 | 620 | 79.2 | 114 |
NPS | Outside Ø A |
Inside Ø B |
Center Line C |
THK t |
Web Width W |
