ASME B16.5 Long Weld Neck Flanges are constantly used for high-pressure applications. To work with a Long Weld Neck Raised Face Flanges, it is important to wrap up the line is being used for, considering the way that the inside width of the flanges will collect in the broadness of your line or Fitting. The buttweld joint this flange has with the line close by the fair neighborhood makes this flange safeguarded toward dishing and a solid affiliation. Stainless Steel Long Weld Neck Flanges are striking for over the top divisions of temperature and in conditions where there may be a monster store of bowing and treatment of the flanges.

ASME B16.5 Long Weld Neck brought Face Flanges creators up in UAE. We are stacking merchant of long weld neck flanges, carbon steel long weld neck flanges, ANSI B16 5 long weld neck flanges and rtj long weld neck flanges at very straightforwardness in light of reasonable laborer hours in UAE and entire wellspring of colossal long weld neck flanges 1500#, most astoundingly thoroughly examined plan, cost open in Dubai, India.

Meraki Star Metals Oil & Gas Equipment Trading L.L.C. basic solid districts for is of Stainless steel long weld neck flanges embraced by Saudi Aramco. We have made deftly out of ASME B 16.5 long weld neck flanges. Meraki Star Metals Oil & Gas Equipment Trading L.L.C. is stockist of complete level of EN 1092-2 PN16 Long Weld Neck Flanges, class 600 long weld neck flanges in various sizes.

WNRF flanges in UAE, Long Neck Weld Flanges Manufacturers, Long Neck Weld Flanges Suppliers, Long Neck Weld Flanges Stockists, Long Neck Weld Flanges Exporters

Long Neck Weld Flanges Manufacturers in UAE, Long Neck Weld Flanges Suppliers in UAE, Long Neck Weld Flanges Stockists in UAE, Long Neck Weld Flanges Exporters in UAE

ASME B16.5 long weld neck flanges material, most remarkably unbelievable plan, cost in UAE, demand and latest worth course of action of long weld neck flanges 600# including Hastelloy long weld neck flanges, ASTM A182 SS Long Welding Neck Flanges and Raised Face Long Weld Neck Flanges. ASME B16.5 LWN Flanges and MSS SP-44 Long Weld Neck Flanges to Kuwait, Canada, UK, Egypt, Sweden, France, Oman, Turkey, Thailand, Indonesia, Australia, Bahrain, Qatar, Germany, USA, UAE, Italy, Russia, Malaysia, Iran, Israel, Singapore, Sri Lanka and Saudi Arabia.

We are the most colossal supplier and exporter of 300# Long Weld Neck Flanges, most particularly savvy course of action, cost as we are one of the most stunning supplier and merchant of ASME B16.47 Series b 300# LWN Flanges in UAE. We have our stocking traders in Delhi, Bangalore, Surat (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our Duplex Steel Long Weld Neck Flanges cost going prior to buying BS 4504 PN10 Long Weld Neck Flanges from India or China. Consistently, mail for our live store of ASME B16.5 Class 300 Long Weld Neck Flanges to check types and sizes. With our organized stock we can give you the best expense of Class 600 Long Weld Neck Flanges.

We can comparatively give free occasion of set steel long weld neck flanges. Meraki Star Metals Oil & Gas Equipment Trading L.L.C. is having our Trader and Distributors in Ghaziabad, Kolkata, Aurangabad, Khopoli, Pune, Tamil Nadu, Jaipur, Madhya Pradesh, Delhi, Punjab, Haryana, Ahmedabad, Bhosari, Karnataka, Nagpur, Faridabad, Karnataka, Rajasthan, Raipur, Ludhiana, Maharashtra, Uttar Pradesh, Chhattisgarh, Vadodara, West-Bengal, Bangalore, Chennai (Madras), Rajkot, Gujarat, Indore, Gurgaon, Kolhapur. So, enduring through you are looking for best expense of Inconel LWN Flanges or ASME B16.5 long weld neck flanges, Rtj long weld neck flanges near you with most restricted time transport or free occasion of AWWA C207 LWN Flanges.

Long Neck Weld Flanges Manufacturers in Dubai, Long Neck Weld Flanges Suppliers in Dubai, Long Neck Weld Flanges Stockists in Dubai, Long Neck Weld Flanges Exporters in Dubai

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
ASME B16.5 Long Weld Neck Flange Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Long Weld Neck Raised Face Flange Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Rtj Long Weld Neck Flange Pressure Rating ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Slip On Integral Flange
Long WNRF Flange Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Rtj Long Weld Neck Flange
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Long WNRF Flange
UNI	6Bar 10Bar 16Bar 25Bar 40Bar Long Weld Neck Raised Face Flange
EN	6Bar 10Bar 16Bar 25Bar 40Bar Grooved Long Weld Neck Flange
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types of Reducing Long Weld Neck Flange	Forged / Threaded / Screwed / Plate
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin	Indian / West Europe / Japan / USA / Korean
Manufacturer of	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. Rtj Long Weld Neck Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Grooved Long Weld Neck Flange The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Long Weld Neck Raised Face Flange Uses & application	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Export to	Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc

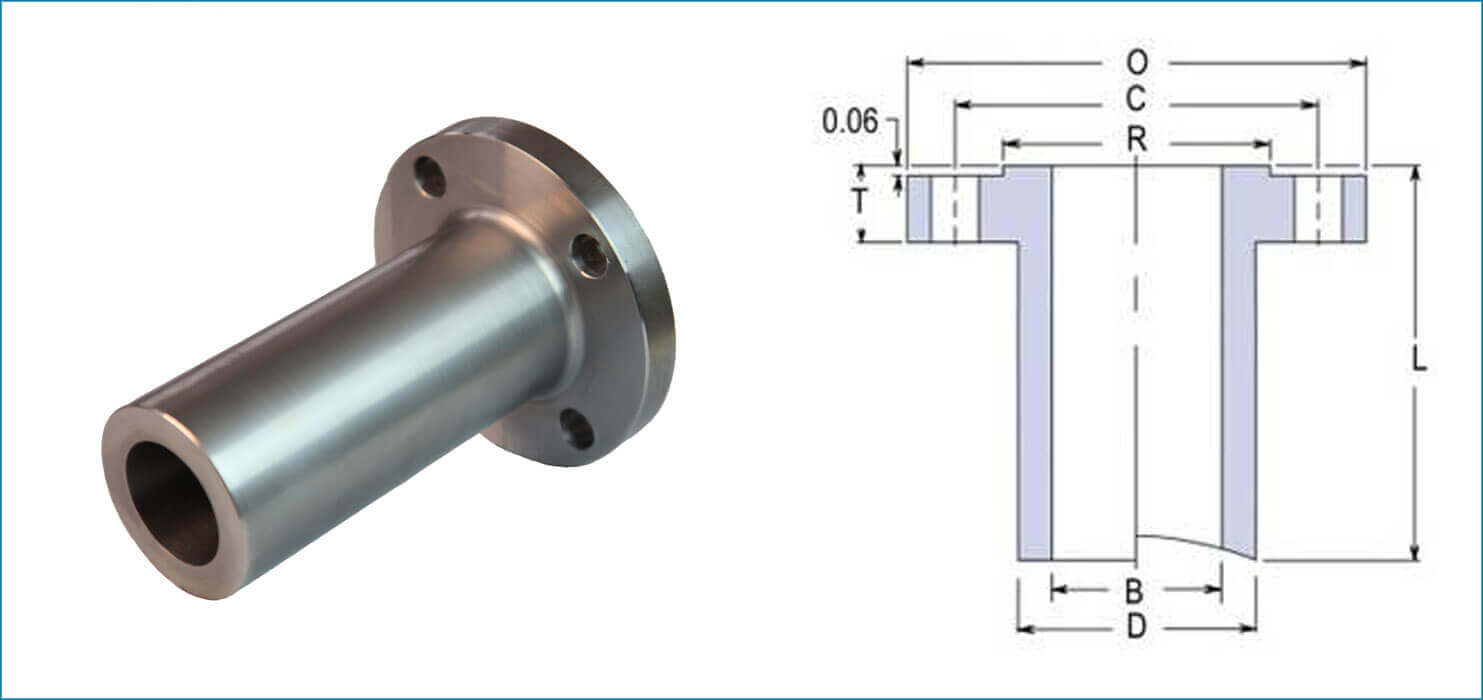

ASME B16.5 Long Neck Weld Flange Dimension

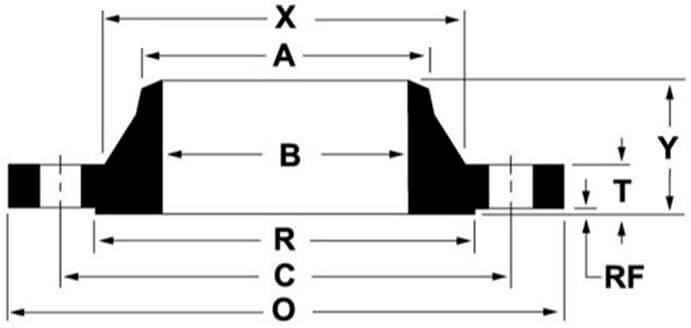

Class 150 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size
		A	B	C	D	E	F	G
1/2	15	90	9.6	30	21.3	34.9	2	60.3	4	1/2	55	5/8
3/4	20	100	11.2	38	26.7	42.9	2	69.9	4	1/2	65	5/8
1	25	110	12.7	49	33.4	50.8	2	79.4	4	1/2	65	5/8
1 1/4	32	115	14.3	59	42.2	63.5	2	88.9	4	1/2	70	5/8
1 1/2	40	125	15.9	65	48.3	73	2	98.4	4	1/2	70	5/8
2	50	150	17.5	78	60.3	92.1	2	120.7	4	5/8	85	3/4
2 1/2	65	180	20.7	90	73	104.8	2	139.7	4	5/8	90	3/4
3	80	190	22.3	108	88.9	127	2	152.4	4	5/8	90	3/4
3 1/2	90	215	22.3	122	101.6	139.7	2	177.8	8	5/8	90	3/4
4	100	230	22.3	135	114.3	157.2	2	190.5	8	5/8	90	3/4
5	125	255	22.3	164	141.3	185.7	2	215.9	8	3/4	95	7/8
6	150	280	23.9	192	168.3	215.9	2	241.3	8	3/4	100	7/8
8	200	345	27	246	219.1	269.9	2	298.5	8	3/4	110	7/8
10	250	405	28.6	305	273	323.8	2	362	12	7/8	115	1
12	300	485	30.2	365	323.8	381	2	431.8	12	7/8	120	1
14	350	535	33.4	400	355.6	412.8	2	476.3	12	1	135	1 1/8
16	400	595	35	457	406.4	469.9	2	539.8	16	1	135	1 1/8
18	450	635	38.1	505	457.2	533.4	2	577.9	16	1 1/8	145	1 1/4
20	500	700	41.3	559	508	584.2	2	635	20	1 1/8	160	1 1/4
24	600	815	46.1	663	610	692.2	2	749.3	20	1 1/4	170	1 3/8

Class 300 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size
		A	B	C	D	E	F	G
1/2	15	95	12.7	38	21.3	34.9	2	66.7	4	1/2	65	5/8
3/4	20	115	14.3	48	26.7	42.9	2	82.6	4	5/8	75	3/4
1	25	125	15.9	54	33.4	50.8	2	88.9	4	5/8	75	3/4
1 1/4	32	135	17.5	64	42.2	63.5	2	98.4	4	5/8	85	3/4
1 1/2	40	155	19.1	70	48.3	73	2	114.3	4	3/4	90	7/8
2	50	165	20.7	84	60.3	92.1	2	127	8	5/8	90	3/4
2 1/2	65	190	23.9	100	73	104.8	2	149.2	8	3/4	100	7/8
3	80	210	27	117	88.9	127	2	168.3	8	3/4	110	7/8
3 1/2	90	230	28.6	133	101.6	139.7	2	184.2	8	3/4	110	7/8
4	100	255	30.2	146	114.3	157.2	2	200	8	3/4	115	7/8
5	125	280	33.4	178	141.3	185.7	2	235	8	3/4	120	7/8
6	150	320	35	206	168.3	215.9	2	269.9	12	3/4	120	7/8
8	200	380	39.7	260	219.1	269.9	2	330.2	12	7/8	140	1
10	250	445	46.1	321	273	323.8	2	387.4	16	1	160	1 1/8
12	300	520	49.3	375	323.8	381	2	450.8	16	1 1/8	170	1 1/4
14	350	585	52.4	425	355.6	412.8	2	514.4	20	1 1/8	180	1 1/4
16	400	650	55.6	483	406.4	469.9	2	571.5	20	1 1/4	190	1 3/8
18	450	710	58.8	533	457	533.4	2	628.6	24	1 1/4	195	1 3/8
20	500	775	62	587	508	584.2	2	685.8	24	1 1/4	205	1 3/8
24	600	915	68.3	702	610	692.2	2	812.8	24	1 1/2	230	1 5/8

Class 400 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size
		A	B	C	D	E	F	G
1/2	15	95	14.3	38	21.3	34.9	7	66.7	4	1/2	75	5/8
3/4	20	115	15.9	48	26.7	42.9	7	82.6	4	5/8	90	3/4
1	25	125	17.5	54	33.4	50.8	7	88.9	4	5/8	90	3/4
1 1/4	32	135	20.7	64	42.2	63.5	7	98.4	4	5/8	95	3/4
1 1/2	40	155	22.3	70	48.3	73	7	114.3	4	3/4	110	7/8
2	50	165	25.4	84	60.3	92.1	7	127	8	5/8	110	3/4
2 1/2	65	190	28.6	100	73	104.8	7	149.2	8	3/4	120	7/8
3	80	210	31.8	117	88.9	127	7	168.3	8	3/4	125	7/8
3 1/2	90	230	35	133	101.6	N/A	7	184.2	8	7/8	140	1
4	100	255	35	146	114.3	157.2	7	200	8	7/8	140	1
5	125	280	38.1	178	141.3	185.7	7	235	8	7/8	145	1
6	150	320	41.3	206	168.3	215.9	7	269.9	12	7/8	150	1
8	200	380	47.7	260	219.1	269.9	7	330	12	1	170	1 1/8
10	250	445	54	321	273	323.8	7	387.4	16	1 1/8	190	1 1/4
12	300	520	57.2	375	323.8	381	7	450.8	16	1 1/4	205	1 3/8
14	350	585	60.4	425	355.6	412.8	7	514.4	20	1 1/4	210	1 3/8
16	400	650	63.5	483	406.4	469.9	7	571.5	20	1 3/8	220	1 1/2
18	450	710	66.7	533	457	533.4	7	628.6	24	1 3/8	230	1 1/2
20	500	775	69.9	587	508	584.2	7	685.8	24	1 1/2	240	1 3/4
24	600	915	76.2	702	610	692.2	7	812.8	24	1 3/4	265	1 7/8

Class 600 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size
		A	B	C	D	E	F	G
1/2	15	95	14.3	38	21.3	34.9	7	66.7	4	1/2	75	5/8
3/4	20	115	15.9	48	26.7	42.9	7	82.6	4	5/8	90	3/4
1	25	125	17.5	54	33.4	50.8	7	88.9	4	5/8	90	3/4
1 1/4	32	135	20.7	64	42.2	63.5	7	98.4	4	5/8	95	3/4
1 1/2	40	155	22.3	70	48.3	73	7	114.3	4	3/4	110	7/8
2	50	165	25.4	84	60.3	92.1	7	127	8	5/8	110	3/4
2 1/2	65	190	28.6	100	73	104.8	7	149.2	8	3/4	120	7/8
3	80	210	31.8	117	88.9	127	7	168.3	8	3/4	125	7/8
3 1/2	90	230	35	133	101.6	N/A	7	184.2	8	7/8	140	1
4	100	275	38.1	152	114.3	157.2	7	215.9	8	7/8	145	1
5	125	330	44.5	189	141.3	185.7	7	266.7	8	1	165	1 1/8
6	150	355	47.7	222	168.3	215.9	7	292.1	12	1	170	1 1/8
8	200	420	55.6	273	219.1	269.9	7	349.2	12	1 1/8	190	1 1/4
10	250	510	63.5	343	273	323.8	7	431.8	16	1 1/4	215	1 3/8
12	300	560	66.7	400	323.8	381	7	489	20	1 1/4	220	1 3/8
14	350	605	69.9	432	355.6	412.8	7	527	20	1 3/8	235	1 1/2
16	400	685	76.2	495	406.4	469.9	7	603.2	20	1 1/2	255	1 5/8
18	450	745	82.6	546	457	533.4	7	654	20	1 5/8	275	1 3/4
20	500	815	88.9	610	508	584.2	7	723.9	24	1 5/8	285	1 3/4

Class 900 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size
		A	B	C	D	E	F	G
1/2	15	120	22.3	38	21.3	34.9	7	82.6	4	3/4	110	7/8
3/4	20	130	25.4	44	26.7	42.9	7	88.9	4	3/4	115	7/8
1	25	150	28.6	52	33.4	50.8	7	101.6	4	7/8	125	1
1 1/4	32	160	28.6	64	42.2	63.5	7	111.1	4	7/8	125	1
1 1/2	40	180	31.8	70	48.3	73	7	123.8	4	1	140	1 1/8
2	50	215	38.1	105	60.3	92.1	7	165.1	8	7/8	145	1
2 1/2	65	245	41.3	124	73	104.8	7	190.5	8	1	160	1 1/8
3	80	240	38.1	127	88.9	127	7	190.5	8	7/8	145	1
4	100	290	44.5	159	114.3	157.2	7	235	8	1 1/8	170	1 1/4
5	125	350	50.8	190	141.3	185.7	7	279.4	8	1 1/4	190	1 3/8
6	150	380	55.6	235	168.3	215.9	7	317.5	12	1 1/8	190	1 1/4
8	200	470	63.5	298	219.1	269.9	7	393.7	12	1 3/8	220	1 1/2
10	250	545	69.9	368	273	323.8	7	469.9	16	1 3/8	235	1 1/2
12	300	610	79.4	419	323.8	381	7	533.4	20	1 3/8	255	1 1/2
14	350	640	85.8	451	355.6	412.8	7	558.8	20	1 1/2	275	1 5/8
16	400	705	88.9	508	406.4	469.9	7	616	20	1 5/8	285	1 3/4
18	450	785	101.6	565	457	533.4	7	685.8	20	1 7/8	325	2
20	500	855	108	622	508	584.2	7	749.3	20	2	350	2 1/8
24	600	1040	139.7	749	610	692.2	7	901.7	20	2 1/2	440	2 5/8

Class 1500 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size
		A	B	C	D	E	F	G
1/2	15	120	22.3	38	21.3	34.9	7	82.6	4	3/4	110	7/8
3/4	20	130	25.4	44	26.7	42.9	7	88.9	4	3/4	115	7/8
1	25	150	28.6	52	33.4	50.8	7	101.6	4	7/8	125	1
1 1/4	32	160	28.6	64	42.2	63.5	7	111.1	4	7/8	125	1
1 1/2	40	180	31.8	70	48.3	73	7	123.8	4	1	140	1 1/8
2	50	215	38.1	105	60.3	92.1	7	165.1	8	7/8	145	1
2 1/2	65	245	41.3	124	73	104.8	7	190.5	8	1	160	1 1/8
3	80	265	47.7	133	88.9	127	7	203.2	8	1 1/8	180	1 1/4
4	100	310	54	162	114.3	157.2	7	241.3	8	1 1/4	195	1 3/8
5	125	375	73.1	197	141.3	185.7	7	292.1	8	1 1/2	250	1 5/8
6	150	395	82.6	229	168.3	215.9	7	317.5	12	1 3/8	260	1 1/2
8	200	485	92.1	292	219.1	269.9	7	393.7	12	1 5/8	290	1 3/4
10	250	585	108	368	273	323.8	7	482.6	12	1 7/8	335	2
12	300	675	123.9	451	323.8	381	7	571.5	16	2	375	2 1/8
14	350	750	133.4	495	355.6	412.8	7	635	16	2 1/4	405	2 3/8
16	400	825	146.1	552	406.4	469.9	7	704.8	16	2 1/2	445	2 5/8
18	450	915	162	597	457	533.4	7	774.7	16	2 3/4	495	2 7/8
20	500	985	177.8	641	508	584.2	7	831.8	16	3	540	3 1/8
24	600	1170	203.2	762	610	692.2	7	990.6	16	3 1/2	615	3 5/8

Class 2500 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size
		A	B	C	D	E	F	G
1/2	15	135	30.2	43	21.3	34.9	7	88.9	4	3/4	120	7/8
3/4	20	140	31.8	51	26.7	42.9	7	95.2	4	3/4	125	7/8
1	25	160	35	57	33.4	50.8	7	108	4	7/8	140	1
1 1/4	32	185	38.1	73	42.2	63.5	7	130.2	4	1	150	1 1/8
1 1/2	40	205	44.5	79	48.3	73	7	146	4	1 1/8	170	1 1/4
2	50	235	50.9	95	60.3	92.1	7	171.4	8	1	180	1 1/8
2 1/2	65	265	57.2	114	73	104.8	7	196.8	8	1 1/8	195	1 1/4
3	80	305	66.7	133	88.9	127	7	228.6	8	1 1/4	220	1 3/8
4	100	355	76.2	165	114.3	157.2	7	273	8	1 1/2	255	1 5/8
5	125	420	92.1	203	141.3	185.7	7	323.8	8	1 3/4	300	1 7/8
6	150	485	108	235	168.3	215.9	7	368.3	8	2	345	2 1/8
8	200	550	127	305	219.1	269.9	7	438.2	12	2	380	2 1/8
10	250	675	165.1	375	273	323.8	7	539.8	12	2 1/2	490	2 5/8
12	300	760	184.2	441	323.8	381	7	619.1	12	2 3/4	540	2 7/8
