Exclusive distributor & stockist of Flanges, Pipe Fittings, Buttweld Fittings, Forged Fittings & Pipes & Tubes, Sheets & Plates, Round Bars, Fasteners in UAE

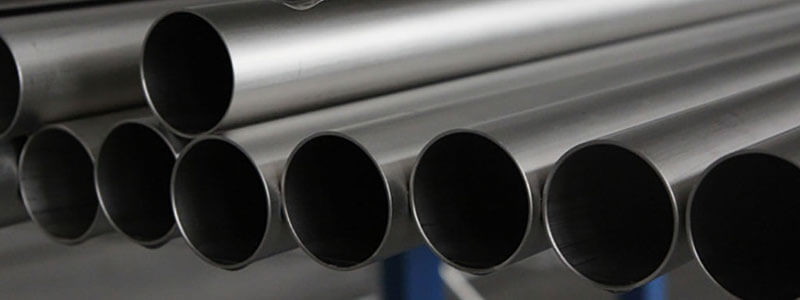

Meraki Star Metals Oil & Gas Equipment Trading L.L.C. is one of the focal relationships for the getting-together, giving and exchanging of Titanium Gr 1 pipes and tubes. We supply Titanium Tubes to our clients in various sizes, subtleties, types, lengths, structures, etc.

The titanium used in the creation of tubes and pipes is an austenitic mix. These titanium grade pipes accommodated the clients are made all around and public quality principles. The pipes given are per the client's necessities and choices. Titanium is used thinking about how it is perhaps of the most grounded metals which have attributes like high robustness, strength, phenomenal use hindrance, etc. If you are looking for the best quality, nothing is better than Titanium Gr1 pipes and tubes. These are used in affiliations that require such pipes and tubes that can navigate a significant number of over the top conditions. This association supplies them in different sorts like reliable, made and welded types.

Titanium Gr 1 Pipes & Tubes Manufacturers, Titanium Gr 1 Pipes & Tubes Suppliers, Titanium Gr 1 Pipes & Tubes Stcokists, Titanium Gr 1 Pipes & Tubes Exporters

Titanium Gr 1 Pipes & Tubes Manufacturers in UAE, Titanium Gr 1 Pipes & Tubes Suppliers in UAE, Titanium Gr 1 Pipes & Tubes Stcokists in UAE, Titanium Gr 1 Pipes & Tubes Exporters in UAE

Titanium Gr 1 Pipes and tubes are used in various affiliations like readiness, flight, substance endeavors, military applications, besides in the social occasion of sports stock. It is also used in the clinical, marine industry, Oil and gas appraisal affiliations, Auto endeavors and Hydrocarbon undertakings and treatment work environments.

Titanium Gr 1 Pipes and tubes offers a more principal working reach as well as outrageous use obstruction than aluminum. These pipes have overwhelming greatness and strength ranges between grades 1 and 3. These have superb worth in the market considering their overwhelming smooth surface and more humble than common pinnacle which gives raised solace close by better surface and plan. Various benefits blend a lower thickness of titanium pipes and tubes, which gives security from made substances and utilization, other than similarly works with incredible power move properties. Titanium pipes are hazy from steel pipes concerning strength, anyway loved in the market as a result of its less thickness.

In the business, the testing of Titanium Gr 1 pipes and tubes is given the need for better quality things. Tests created include hardness tests, compound tests, utilization tests, pitting block tests, material ID tests, etc. The records obliged buyers to join unpleasant substance testing reports; guarantee letters, material distinguishable quality reports, etc.

Titanium Gr 1 Pipes & Tubes Manufacturers in Dubai, Titanium Gr 1 Pipes & Tubes Suppliers in Dubai, Titanium Gr 1 Pipes & Tubes Stcokists in Dubai, Titanium Gr 1 Pipes & Tubes Exporters in Dubai

STANDARD WERKSTOFF NR. UNS
Titanium Gr 1 3.7025 R50250

Specification : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Pipe Range : ½”NB to 24”NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request

C Fe H N O Ti
max max max max max max
0.1 0.2 0.015 0.03 0.18 99.5

Hardness, Brinell 120120 annealed
Hardness, Knoop132132 Estimated from Brinell.
Hardness, Rockwell B7070 annealed
Hardness, Vickers122122 Estimated from Brinell.
Tensile Strength, Ultimate240 MPa34800 psi
Tensile Strength, Yield170 - 310 MPa24700 - 45000 psi
Elongation at Break24 %24 %
Reduction of Area35 %35 %
Modulus of Elasticity105 GPa15200 ksi In Tension
Compressive Modulus110 GPa16000 ksi
Poisson's Ratio0.370.37
Charpy Impact310 J229 ft-lb V-notch
Shear Modulus45 GPa6530 ksi

Physical PropertiesMetricEnglish
Density4.51 g/cc0.163 lb/in³
