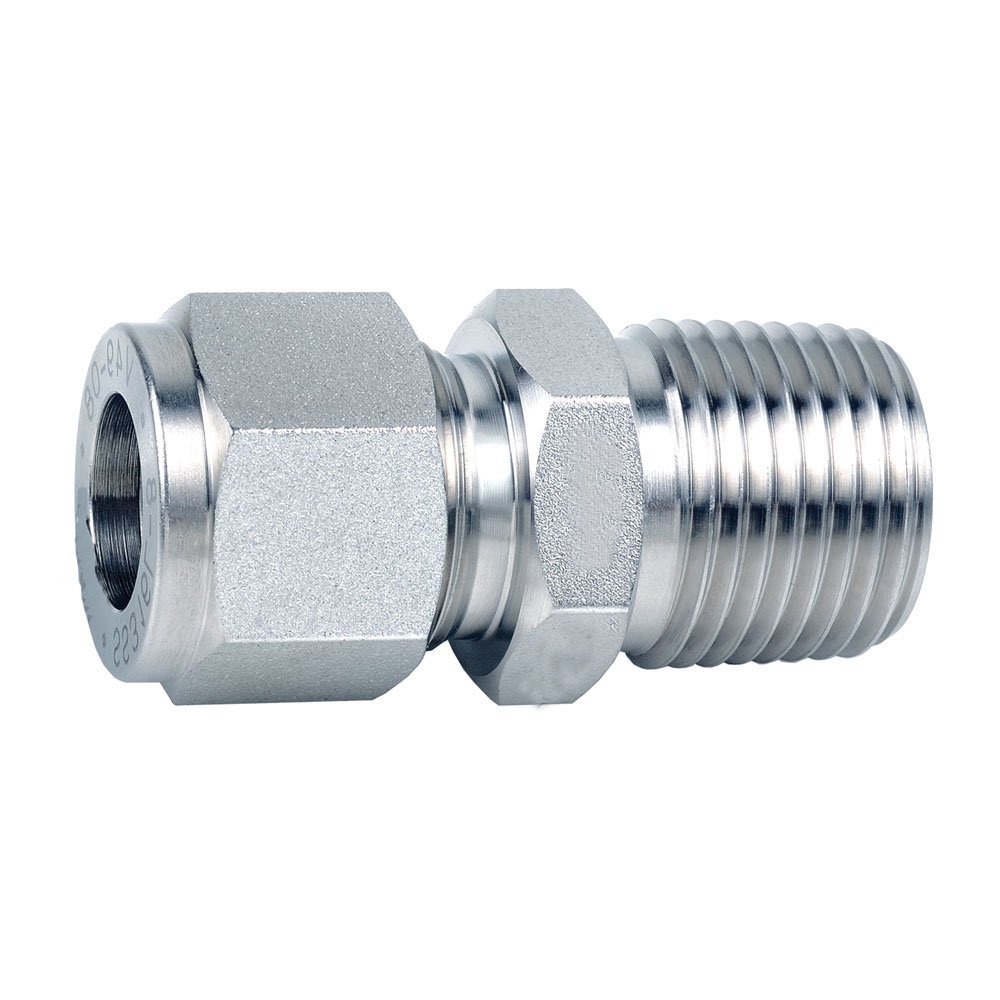

Meraki Star Metals Oil & Gas Equipment Trading L.L.C. is one of the main Manufacturers, Suppliers, and Exporters of Male Connectors Tube Fittings that are utilized to present a chamber to a female string. The offered degree of male connector tube fittings is made by utilizing different materials like Metal, Stainless Steel (in different grades, for example, SS 304, SS 304L, SS 316, SS 316L), Monel, Inconel and different materials according to client’s needs.
Male Connector poles range from 5.5mm to 26mm and are provided in different circumstances like Hot Rolled, Strengthened Salted. If necessary, wire poles are additionally covered for better execution in drawing and pressed in ocean-commendable packings.
Male Connector Manufacturers, Male Connector Suppliers, Male Connector Stcokists, Male Connector Exporters
Male Connector Manufacturers in UAE, Male Connector Suppliers in UAE, Male Connector Stcokists in UAE, Male Connector Exporters in UAE
We offer a wide degree of Male Connector Fittings that are reasonable to solidify different chambers. Besides, these chamber male connectors are typical in different endeavors for a particular clarification. This thing is not difficult to fix and is astoundingly alluded to among clients for its strong plan and amazing execution. Call us now to get a free declaration.
SS 304/304L/304H Sheets and Plates are very used by the paper and squash experiences, material gear producer, condensers in oil based product and atomic fuel age stations, and petrochemical dealing with stuff makers. The hypothesis behind the nuances of these grade sheets and plates is tended to by the ASTM A240 and ASME SA240 rules.
Male Connector Manufacturers in Dubai, Male Connector Suppliers in Dubai, Male Connector Stcokists in Dubai, Male Connector Exporters in Dubai
| Metric Tubing | |||||||||
|
Tube O.D mm |
NPT thread | Part Number | A | C | D | R | W | Min bore | |
| mm | mm | mm | mm | inch | mm | ||||
| 3 | 1/8 | 29.7 | 15.3 | 23.1 | 9.5 | 7/16 | 2.4 | ||
| 3 | 1/4 | 35.3 | 15.3 | 28.7 | 14.3 | 9/16 | 2.4 | ||
| 4 | 1/8 | 30.4 | 16.1 | 23.8 | 9.5 | 7/16 | 3.0 | ||
| 4 | 1/4 | 36.0 | 16.1 | 29.4 | 14.3 | 9/16 | 3.0 | ||
| 6 | 1/8 | 32.9 | 17.7 | 25.4 | 9.5 | 1/2 | 3.2 | ||
| 6 | 1/4 | 37.7 | 17.7 | 30.2 | 14.3 | 9/16 | 4.8 | ||
| 6 | 3/8 | 38.5 | 17.7 | 31.0 | 14.3 | 11/16 | 4.8 | ||
| 6 | 1/2 | 44.0 | 17.7 | 36.5 | 19.1 | 7/8 | 4.8 | ||
| 8 | 1/8 | 34.2 | 18.6 | 26.7 | 9.5 | 9/16 | 4.8 | ||
| 8 | 1/4 | 38.7 | 18.6 | 31.2 | 14.3 | 9/16 | 6.4 | ||
| 8 | 3/8 | 39.3 | 18.6 | 31.8 | 14.3 | 11/16 | 6.4 | ||
| 8 | 1/2 | 44.8 | 18.6 | 37.3 | 19.1 | 7/8 | 6.4 | ||
| 10 | 1/4 | 40.9 | 19.5 | 33.3 | 14.3 | 11/16 | 7.1 | ||
| 10 | 3/8 | 40.9 | 19.5 | 33.3 | 14.3 | 11/16 | 7.9 | ||
| 10 | 1/2 | 45.7 | 19.5 | 38.1 | 19.1 | 7/8 | 7.9 | ||
| 12 | 1/4 | 43.4 | 22.0 | 33.3 | 14.3 | 13/16 | 7.1 | ||
| 12 | 3/8 | 43.4 | 22.0 | 33.3 | 14.3 | 13/16 | 9.5 | ||
| 12 | 1/2 | 48.2 | 22.0 | 38.1 | 19.1 | 7/8 | 9.5 | ||
| 12 | 3/4 | 49.0 | 22.0 | 38.9 | 19.1 | 1.1/16 | 9.5 | ||
| 16 | 3/8 | 44.2 | 22.0 | 34.1 | 14.3 | 15/16 | 10.3 | ||
| 16 | 1/2 | 49.0 | 22.0 | 38.9 | 19.1 | 15/16 | 12.7 | ||
| 16 | 3/4 | 49.0 | 22.0 | 38.9 | 19.1 | 1.1/16 | 12.7 | ||
| 18 | 1/2 | 50.6 | 22.0 | 40.5 | 19.1 | 1.1/16 | 12.7 | ||
| 18 | 3/4 | 50.6 | 22.0 | 40.5 | 19.1 | 1.1/16 | 15.1 | ||
| 20 | 1/2 | 50.6 | 22.0 | 42.2 | 19.1 | 1.3/16 | 12.7 | ||
| 20 | 3/4 | 52.3 | 22.0 | 42.2 | 19.1 | 1.3/16 | 15.9 | ||
| 25 | 3/4 | 57.5 | 26.5 | 45.2 | 19.1 | 1.3/8 | 18.3 | ||
| 25 | 1 | 62.3 | 26.5 | 50.0 | 23.8 | 1.3/8 | 22.2 | ||
|
Tube O.D inch |
NPT thread | A | C | D | R | W | Min bore | |||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | mm | ||||
| 1/16 | 1/16 | 0.92 | 9.7 | 0.43 | 10.9 | 0.78 | 19.8 | 0.38 | 9.7 | 5/16 | 0.05 | 1.3 | ||
| 1/16 | 1/8 | 0.98 | 24.9 | 0.43 | 10.9 | 0.84 | 21.3 | 0.38 | 9.7 | 7/16 | 0.05 | 1.3 | ||
| 1/16 | 1/4 | 1.20 | 30.5 | 0.43 | 10.9 | 1.06 | 26.9 | 0.56 | 14.2 | 9/16 | 0.05 | 1.3 | ||
| 1/8 | 1/16 | 1.16 | 29.5 | 0.60 | 15.2 | 0.91 | 23.1 | 0.38 | 9.7 | 3/8 | 0.09 | 2.3 | ||
| 1/8 | 1/8 | 1.16 | 29.5 | 0.60 | 15.2 | 0.91 | 23.1 | 0.38 | 9.7 | 7/16 | 0.09 | 2.3 | ||
| 1/8 | 1/4 | 1.38 | 35.1 | 0.60 | 15.2 | 1.13 | 28.7 | 0.56 | 14.2 | 9/16 | 0.09 | 2.3 | ||
| 1/8 | 3/8 | 1.41 | 35.8 | 0.60 | 15.2 | 1.15 | 29.2 | 0.56 | 14.2 | 11/16 | 0.09 | 2.3 | ||
| 3/16 | 1/16 | 1.20 | 30.5 | 0.63 | 16.0 | 0.95 | 24.1 | 0.38 | 9.7 | 7/16 | 0.13 | 3.3 | ||
| 3/16 | 1/8 | 1.20 | 30.5 | 0.63 | 16.0 | 0.95 | 24.1 | 0.38 | 9.7 | 7/16 | 0.13 | 3.3 | ||
| 3/16 | 1/4 | 1.41 | 35.8 | 0.63 | 16.0 | 1.16 | 29.5 | 0.56 | 14.2 | 9/16 | 0.13 | 3.3 | ||
| 1/4 | 1/16 | 1.30 | 33.0 | 0.70 | 17.8 | 1.00 | 25.4 | 0.38 | 9.7 | 1/2 | 0.13 | 3.3 | ||
| 1/4 | 1/8 | 1.30 | 33.0 | 0.70 | 17.8 | 1.00 | 25.4 | 0.38 | 9.7 | 1/2 | 0.19 | 4.8 | ||
| 1/4 | 1/4 | 1.49 | 37.9 | 0.70 | 17.8 | 1.19 | 30.2 | 0.56 | 14.2 | 9/16 | 0.19 | 4.8 | ||
| 1/4 | 3/8 | 1.52 | 38.6 | 0.70 | 17.8 | 1.22 | 31.0 | 0.56 | 14.2 | 11/16 | 0.19 | 4.8 | ||
| 1/4 | 1/2 | 1.74 | 44.2 | 0.70 | 17.8 | 1.44 | 36.6 | 0.75 | 19.1 | 7/8 | 0.19 | 4.8 | ||
| 5/16 | 1/8 | 1.34 | 34.0 | 0.73 | 18.6 | 1.05 | 26.7 | 0.38 | 9.7 | 9/16 | 0.19 | 4.8 | ||
| 5/16 | 1/4 | 1.52 | 38.6 | 0.73 | 18.6 | 1.23 | 31.2 | 0.56 | 14.2 | 9/16 | 0.25 | 6.4 | ||
| 5/16 | 3/8 | 1.54 | 39.1 | 0.73 | 18.6 | 1.25 | 31.8 | 0.56 | 14.2 | 11/16 | 0.25 | 6.4 | ||
| 3/8 | 1/8 | 1.38 | 35.1 | 0.76 | 19.3 | 1.09 | 27.7 | 0.38 | 9.7 | 5/8 | 0.19 | 4.8 | ||
| 3/8 | 1/4 | 1.57 | 39.9 | 0.76 | 19.3 | 1.28 | 32.5 | 0.56 | 14.2 | 5/8 | 0.28 | 7.1 | ||
| 3/8 | 3/8 | 1.57 | 39.9 | 0.76 | 19.3 | 1.28 | 32.5 | 0.56 | 14.2 | 11/16 | 0.28 | 7.1 | ||
| 3/8 | 1/2 | 1.79 | 45.5 | 0.76 | 19.3 | 1.50 | 38.1 | 0.75 | 19.1 | 7/8 | 0.28 | 7.1 | ||
| 3/8 | 3/4 | 1.82 | 46.2 | 0.76 | 19.3 | 1.53 | 38.9 | 0.75 | 19.1 | 1.1/16 | 0.28 | 7.1 | ||
| 1/2 | 1/8 | 1.51 | 38.4 | 0.86 | 21.8 | 1.13 | 28.7 | 0.38 | 9.7 | 13/16 | 0.19 | 4.8 | ||
| 1/2 | 1/4 | 1.69 | 42.9 | 0.86 | 21.8 | 1.31 | 33.3 | 0.56 | 14.2 | 13/16 | 0.28 | 7.1 | ||
| 1/2 | 3/8 | 1.69 | 42.9 | 0.86 | 21.8 | 1.31 | 33.3 | 0.56 | 14.2 | 13/16 | 0.41 | 10.4 | ||
| 1/2 | 1/2 | 1.88 | 47.8 | 0.86 | 21.8 | 1.50 | 38.1 | 0.75 | 19.1 | 7/8 | 0.41 | 10.4 | ||
| 1/2 | 3/4 | 1.91 | 48.5 | 0.86 | 21.8 | 1.53 | 38.9 | 0.75 | 19.1 | 1.1/16 | 0.41 | 10.4 | ||
| 1/2 | 1 | 2.26 | 57.2 | 0.86 | 21.8 | 1.88 | 47.8 | 0.94 | 23.9 | 1.3/8 | 0.41 | 10.4 | ||
| 5/8 | 3/8 | 1.72 | 43.7 | 0.86 | 21.8 | 1.34 | 34.0 | 0.56 | 14.2 | 15/16 | 0.41 | 10.4 | ||
| 5/8 | 1/2 | 1.91 | 48.5 | 0.86 | 21.8 | 1.53 | 38.9 | 0.75 | 19.1 | 15/16 | 0.50 | 12.7 | ||
| 5/8 | 3/4 | 1.91 | 48.5 | 0.86 | 21.8 | 1.53 | 38.9 | 0.75 | 19.1 | 1.1/16 | 0.50 | 12.7 | ||
| 3/4 | 1/2 | 1.97 | 50.0 | 0.86 | 21.8 | 1.59 | 40.4 | 0.75 | 19.1 | 1.1/16 | 0.50 | 12.7 | ||
| 3/4 | 3/4 | 1.97 | 50.0 | 0.86 | 21.8 | 1.59 | 40.4 | 0.75 | 19.1 | 1.1/16 | 0.63 | 16. | ||
| 3/4 | 1 | 2.19 | 55.6 | 0.86 | 21.8 | 1.81 | 46.0 | 0.94 | 23.9 | 1.3/8 | 0.63 | 16. | ||
| 7/8 | 3/4 | 1.97 | 50.0 | 0.86 | 21.8 | 1.59 | 40.4 | 0.75 | 19.1 | 1.3/16 | 0.72 | 18.3 | ||
| 1 | 1/2 | 2.25 | 57.2 | 1.04 | 26.4 | 1.78 | 45.2 | 0.75 | 19.1 | 1.3/8 | 0.50 | 12.7 | ||
| 1 | 3/4 | 2.25 | 57.2 | 1.04 | 26.4 | 1.78 | 45.2 | 0.75 | 19.1 | 1.3/8 | 0.72 | 18.3 | ||
| 1 | 1 | 2.44 | 62.0 | 1.04 | 26.4 | 1.97 | 50.0 | 0.94 | 23.9 | 1.3/8 | 0.88 | 22.2 | ||
|
Metric tubing |
||||||||||
| Tube O.D mm | NPT thread | Part Number | A | C | D | R |
W inch |
Min bore mm |
||
| mm | mm | mm | mm | |||||||
| 3 | 1/8 | 29.7 | 15.3 | 23.1 | 9.5 | 7/16 |
2.4 |
|||
| 3 | 1/4 | 35.3 | 15.3 | 28.7 | 14.3 | 9/16 | 2.4 | |||
| 4 | 1/8</td | 30.4 | 16.1 | 23.8 | 9.5 | 7/16 | 3.0 | |||
| 4 | 1/4 | 36.0 | 16.1 | 29.4 | 14.3 | 9/16 | 3.0 | |||
| 6 | 1/8 | 32.9 | 17.7 | 25.4 | 9.5 | 1/2 | 3.2 | |||
| 6 | 1/4 | 37.7 | 17.7 | 30.2 | 14.3 | 9/16 | 4.8 | |||
| 6 | 3/8 | 38.5 | 17.7 | 31.0 | 14.3 | 11/16 | 4.8 | |||
| 6 | 1/2 | 44.0 | 17.7 | 36.5 | 19.1 | 7/8 | 4.8 | |||
| 8 | 1/8 | 34.2 | 18.6 | 26.7 | 9.5 | 9/16 | 4.8 | |||
| 8 | 1/4 | 38.7 | 18.6 | 31.2 | 14.3 | 9/16 | 6.4 | |||
| 8 | 3/8 | 39.3 | 18.6 | 31.8 | 14.3 | 11/16 | 6.4 | |||
| 8 | 1/2 | 44.8 | 18.6 | 37.3 | 19.1 | 7/8 | 6.4 | |||
| 10 | 1/4 | 40.9 | 19.5 | 33.3 | 14.3 | 11/16 | 7.1 | |||
| 10 | 3/8 | 40.9 | 19.5 | 33.3 | 14.3 | 11/16 | 7.9 | |||
| 10 | 1/2 | 45.7 | 19.5 | 38.1 | 19.1 | 7/8 | 7.9 | |||
| 12 | 1/4 | 43.4 | 22.0 | 33.3 | 14.3 | 13/16 | 7.1 | |||
| 12 | 3/8 | 43.4 | 22.0 | 33.3 | 14.3 | 13/16 | 9.5 | |||
| 12 | 1/2 | 48.2 | 22.0 | 38.1 | 19.1 | 7/8 | 9.5 | |||
| 12 | 3/4 | 49.0 | 22.0 | 38.9 | 19.1 | 1.1/16 | 9.5 | |||
| 16 | 3/8 | 44.2 | 22.0 | 34.1 | 14.3 | 15/16 | 10.3 | |||
| 16 | 1/2 | 49.0 | 22.0 | 38.9 | 19.1 | 15/16 | 12.7 | |||
| 16 | 3/4 | 49.0 | 22.0 | 38.9 | 19.1 | 1.1/16 | 12.7 | |||
| 18 | 1/2 | 50.6 | 22.0 | 40.5 | 19.1 | 1.1/16 | 12.7 | |||
| 18 | 3/4 | 50.6 | 22.0 | 40.5 | 19.1 | 1.1/16 | 15.1 | |||
| 20 | 1/2 | 50.6 | 22.0 | 42.2 | 19.1 | 1.3/16 | 12.7 | |||
| 20 | 3/4 | 52.3 | 22.0 | 42.2 | 19.1 | 1.3/16 | 15.9 | |||
| 25 | 3/4 | 57.5 | 26.5 | 45.2 | 19.1 | 1.3/8 | 18.3 | |||
| 25 | 1 | 62.3 | 26.5 | 50.0 | 23.8 | 1.3/8 | 22.2 | |||
| Tube O.D | BSP Tr thread | A | C | D | R | W | X | Min bore | ||||||
| inch | inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | mm | inch | mm | |
| 1/8 | 1/4 | 1.27 | 32.3 | 0.60 | 15.2 | 1.13 | 28.7 | 0.44 | 11.2 | 3/4 | 0.70 | 17.8 | 0.09 | 2.3 |
| 1/4 | 1/8 | 1.28 | 32.5 | 0.70 | 17.8 | 0.98 | 24.9 | 0.28 | 7.1 | 9/16 | 0.54 | 13.7 | 0.16 | 4.1 |
| 1/4 | 1/4 | 1.49 | 37.9 | 0.70 | 17.8 | 1.19 | 30.2 | 0.44 | 11.2 | 3/4 | 0.70 | 17.8 | 0.19 | 4.8 |
| 1/4 | 3/8 | 1.55 | 39.4 | 0.70 | 17.8 | 1.25 | 31.8 | 0.44 | 11.2 | 7/8 | 0.86 | 21.8 | 0.19 | 4.8 |
| 1/4 | 1/2 | 1.77 | 45.0 | 0.70 | 17.8 | 1.47 | 37.3 | 0.56 | 14.2 | 1.1/16 | 1.01 | 25.7 | 0.19 | 4.8 |
| 3/8 | 1/8 | 1.35 | 34.3 | 0.76 | 19.3 | 1.06 | 26.9 | 0.28 | 7.1 | 5/8 | 0.54 | 13.7 | 0.16 | 4.1 |
| 3/8 | 1/4 | 1.54 | 39.1 | 0.76 | 19.3 | 1.25 | 31.8 | 0.44 | 11.2 | 3/4 | 0.70 | 17.8 | 0.25 | 6.4 |
| 3/8 | 3/8 | 1.57 | 39.9 | 0.76 | ||||||||||
