The R Type Joint Gasket is initially developed for high pressure/ temperature applications which found in the petroleum industry and is primarily used in the oilfield on drilling and completion equipment. However, today this product range can also be found on valves and pipe work assemblies, along with some high integrity pressure vessel joints.

Style R gaskets are manufactured in accordance with both API 6A and ASME B16.20 to suit API 6B and ASME/ANSI B16.5 flanges.

Programming interface ring Joint gaskets come in two fundamental sorts, an oval cross segment and an octagonal cross area. These essential shapes are utilizable En pressures up to 10,000 psi. The aspects are normalized and require uncommonly notched flanges. The octagonal cross segment has a higher fixing proficiency than the oval and would be the favored gasket. Nonetheless, just the oval cross segment can be utilized in the old-kind round base section. The fresher level base depression configuration will acknowledge either the oval or the octagonal cross-area. The fixing surfaces on the ring joint depressions should be flawlessly completed to 63 miniature inches and be liberated from offensive edges, instrument or babble marks. They are sealed by an underlying line contact or an edging activity as the compressive powers are applied.

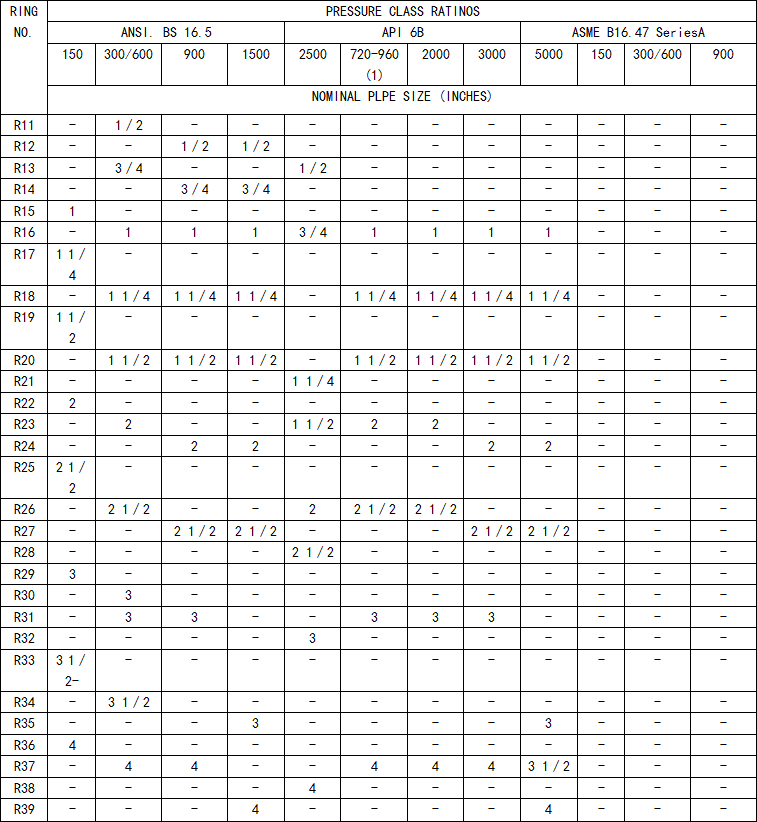

DIMENSIONAL DATA – STYLE R
